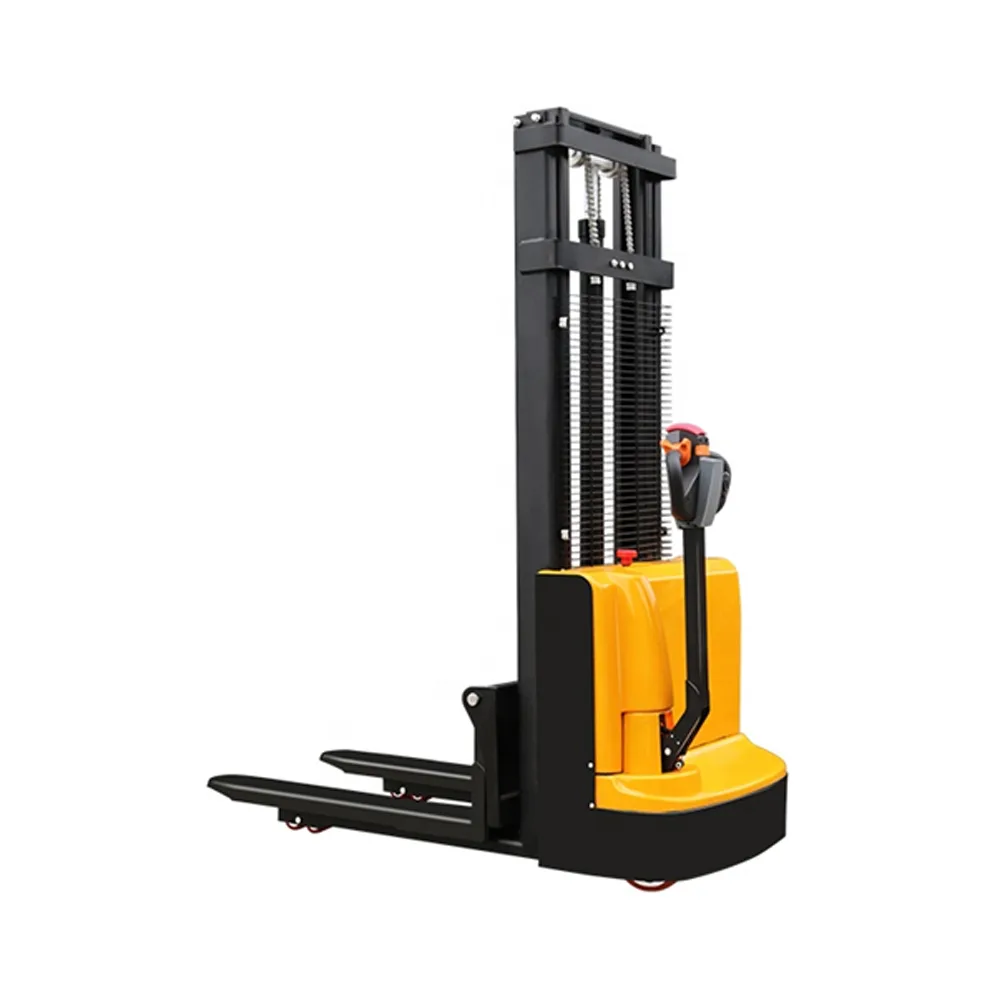

Walkie Electric Stacker
Model No : RE110
CE certified, battery-operated stacker.
Perfect alternative for manual and semi electric stackers
Standard fixed forks
Steering by wire system
Gantry mounting
Bearing tray
Super long controller handle
| Model No. | RE-110 | RE-110 | |
|---|---|---|---|
| Characteristics | |||
| Drive Unit | Electric | Electric | |
| Operator Type | Walkie | Walkie | |
| Capacity | kg | 1500 | 1500 |
| Load Center Distance | mm | 600 | 600 |
| Wheel Base | mm | 1231 | 1231 |
| Weight | |||
| Service Weight (With Battery) | kg | 375 | 445 |
| Service Weight (Without Battery) | kg | 345 | 315 |
| Wheel | |||
| Tyre Type Driving Wheels/Loading Wheels | PU | PU | |
| Size of Loading Wheels | mm | ⌀78 | ⌀78 |
| Size of Driving Wheels | mm | ⌀210 | ⌀210 |
| Size of Balance Wheel | mm | ⌀180 | ⌀180 |
| Wheel Quantity | pcs | 4 | 4 |
| Specification | |||
| Lift Height | mm | 1600 | 3000 |
| Mast Lower Height | mm | 2015 | 2035 |
| Mast Extend Height | mm | 2015 | 3500 |
| Lowered Height | mm | 85 | 85 |
| Overall Length | mm | 1720 | 1720 |
| Length to Face of Forks | mm | 355 | 355 |
| Overall Width | mm | 800 | 800 |
| Fork Dimensions (W*L) | mm | 54*160*1150 | 54*160*1150 |
| Width across Forks | mm | 540/680 | 540/680 |
| Lowered Height of Forks | mm | 90 | 90 |
| Clearance | mm | 30 | 30 |
| Aisle Width of Pallets (1000*1200 mm) | mm | 2256 | 2256 |
| Aisle Width of Pallets (800*1200 mm) | mm | 2184 | 2184 |
| Minimum Turning Radius | mm | 1390 | 1390 |
| Performance | |||
| Travelling Speed, Laden / Unladen | km/h | 3.5/4.0 | 3.5/4.0 |
| Lifting Speed, Laden/Unladen | mm/s | 95/134 | 95/134 |
| Lowering Speed, Laden/Unladen | mm/s | 130/94 | 130/94 |
| Max. Grade Ability, Laden/Unladen | % | 05/07 | 05/07 |
| Service Brake Type | Electronic | Electronic | |
| Electric Engine | |||
| Driving Motor | kw | 0.65 | 0.65 |
| Lifting Motor | kw | 1.5 | 1.5 |
| Battery Voltage / Capacity | V/ah | 24/75 | 24/75 |
| Battery Size | mm | (260*172*214)*2 | (260*172*214)*2 |
| Control System | 1212P-2501 | 1212P-2501 | |
