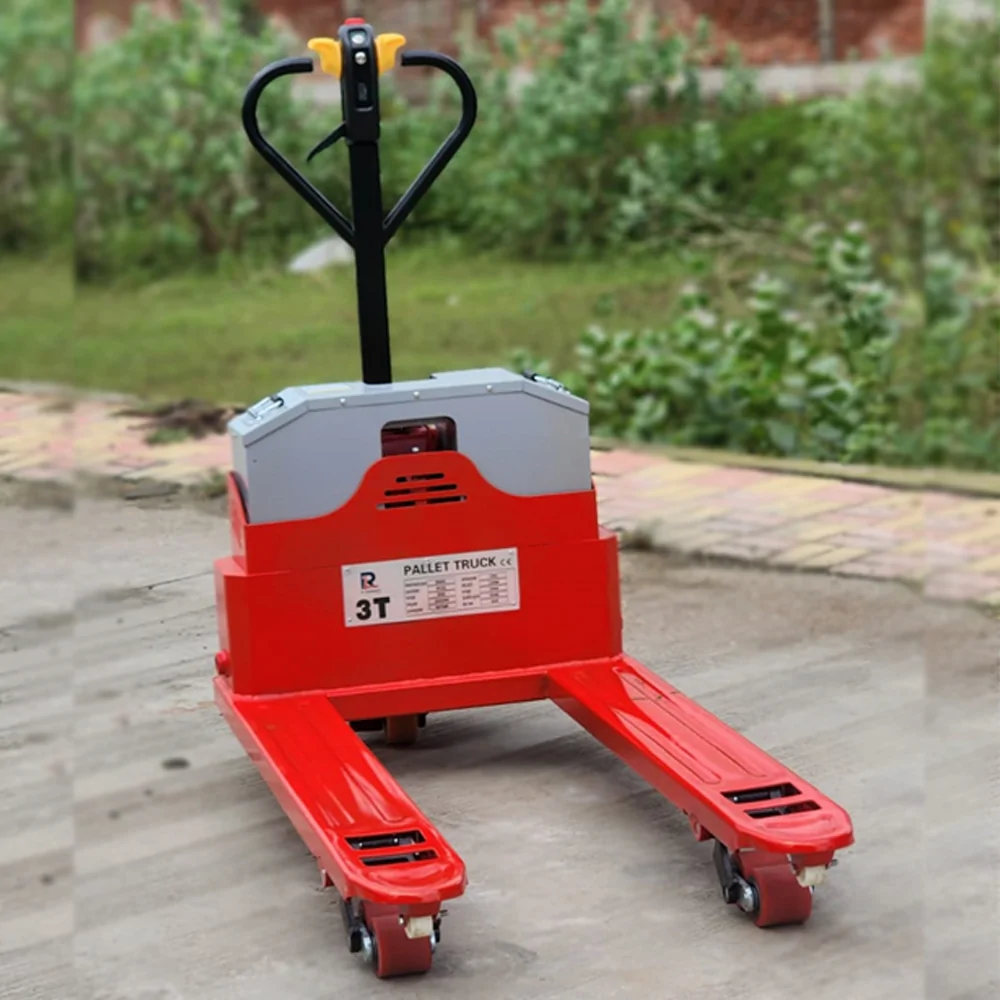

Semi Electric Pallet Truck
Model No : RE-101
Electric pallet truck, with multifunctional operating handle, one-piece single-wheel driven high-power brushless motor, small single-wheel turning radius and large-capacity independent battery, can quickly take out the battery box.
- Capacity 3000 kg
- Fork Length 1160 mm
- Min. Fork Height 75/80 mm
- Max. Lifting Height 200 mm
- Overall Fork Width 685 mm
- Battery 48V/20A
- Motor Power 800 W
- Full Battery Life 480 minutes
Features :
- Multifunctional operating handle.
- One-piece single-wheel driven high-power brushless motor.
- Small single-wheel turning radius.
- Large-capacity independent battery — can quickly take out the battery box.
| Capacity | Kg | 3000 |
|---|---|---|
| Load Center Distance | (mm) | 600 |
| Min.Fork Height | (mm) | 75/80 |
| Front wheel Medium | (mm) | 160/55 |
| Rear Wheel | (mm) | 80/70 |
| Maximum Lifting Height | (mm) | 200 |
| The Maximum/Minimum Height of The Drive Position | (mm) | 770/1254 |
| Overall length | (mm) | 1664/1714 |
| Fork length | (mm) | 1160 |
| Fork Size | (mm) | 160/1160 |
| Overall Fork Width | (mm) | 685 |
| Full Battery Life | (Minutes) | 480 |
| Charging Time | (Minutes) | 520 |
| Turning Radius | (MM) | 1445/1515 |
| Running Speed, Loaded/Unloaded | (-) | 4/5.5 |
| Battery | (-) | 48V/20A |
| Battery Weight | (Kg) | 25 |
| Weight (with Battery) | (Kg) | 160 |
| Motor Power | (W) | 800 |
