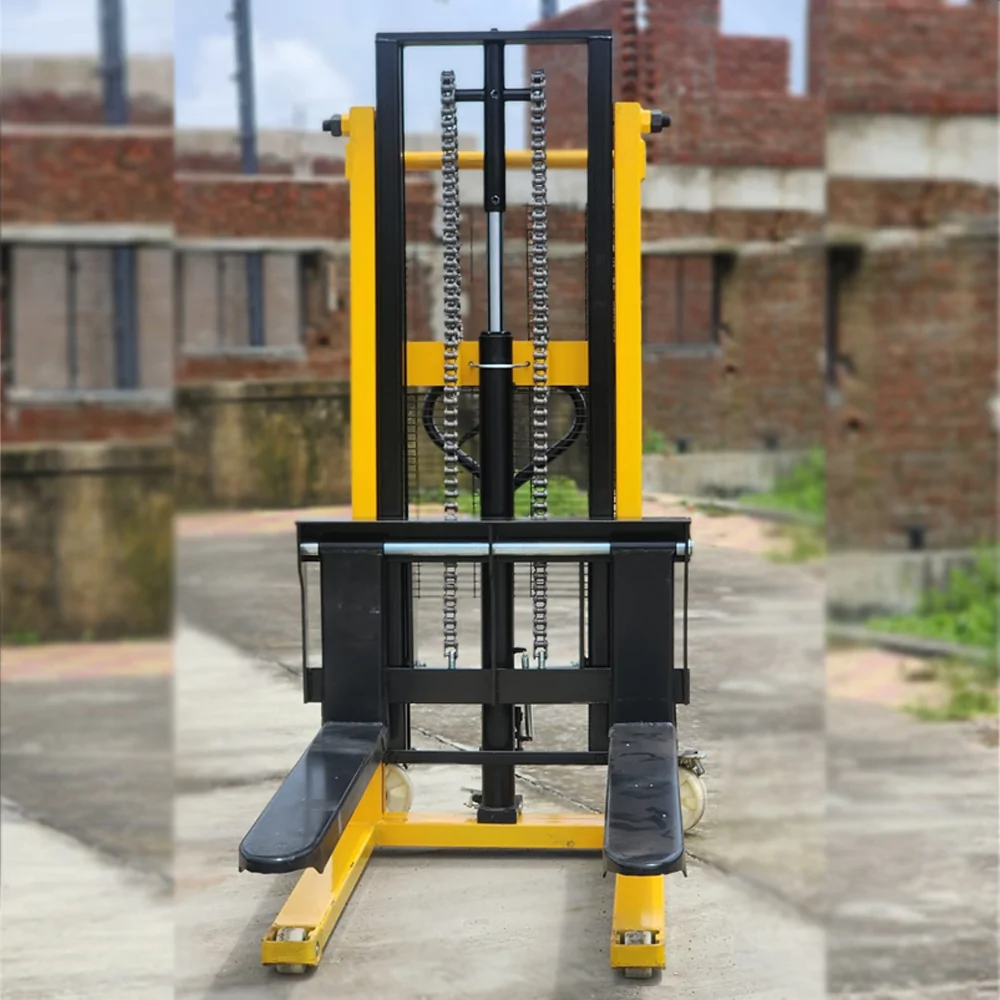

Model No: RE108
We, the Material Handling Equipment’s solutions provider offer unique range of Hand Stackers at competitive price range. Our Hand Stackers provides a safe and efficient way to endless material application at Distribution Center, Logistics Companies, Industries etc.
Cap : 1500 kgs | Lifting ht : 2000 Mtr.
Features :
- Basic capacity from 1500 kg.
- Lift heights: Mono and telescopic masts from 1.6 Mtr.
- Special Fork Length & Width.
- Robust construction.
- Pump assembly includes neutral position for controlled handling of load.
- Pistons and cylinder are hard chrome Plated.
- Double sealed high pressured polyurethane seals are used to prevent leakage.
- Industry’s Best Warranty – 1 year.
- Lifting speed – 14 mm/stroke.
- Our Stackers are suitable, where lifting is primary and the transport distance is short
Product Code | RE-108 | |
Rated Capacity | Kg | 1000 |
Load Center | mm | 600 |
Max. Fork Height | mm | 2000 |
Fork Length | mm | 1150 |
Fork Width | mm | 300-850 |
Turning Radius | mm | 1500 |
Wheelbase | mm | 1100 |
Front Wheel Distance | mm | - |
Overall Length | mm | 1500 |
Overall Width | mm | 400 – 865 |
Overall Height | mm | 1500 |
Self-Weight | kg | 285 Kg Aprox |
