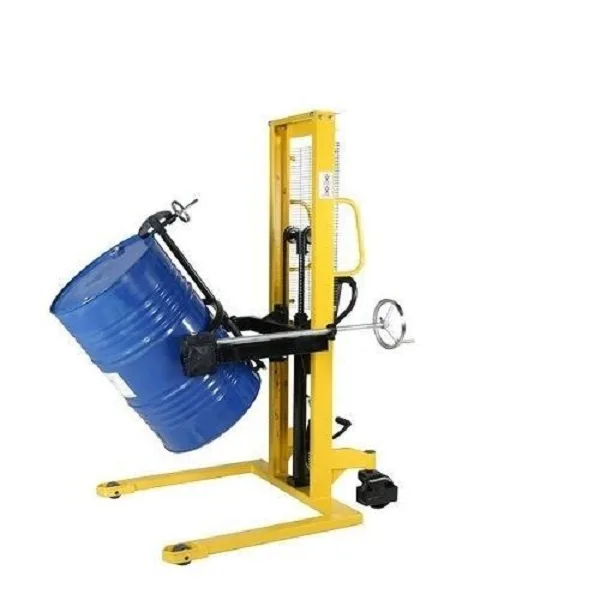

Model No : RE131
Capacity : 210 liter or 500kgs
Lifting height of drum : 1600mm
Application use suitable to steel drum or plastic drum lifting, shifting, tilting, staging, rotate 360 degree

×

Product Inquiry

Categories:

Tilting angle : 0 degree to 360 degree
Movement direction mode : vertical
Drum holder : by means of fabricated belt & pipe with positive gripping Drum tilting: drum lifter cum tilter that is constructed using high quality solid steel that provides stability during transit. The drum pouring angle and height can be controlled while dispensing. The drum can be rotated 360° with the help of a hand gear.
Hydraulic pump part : lifting of the cylinder would be with the help of single acting hand pump
Handle : designed for best manoeuvrability & made of m. S. Pipe

Rated Capacity kg 300
Lifting Height mm 1600
Top bottom mm 2520
Width mm 1000
Height mm 2100
Self-Weight kg 150
Length mm 1300
Wheel (Break Wheel) Inch 6″ 2
Leg Wheel Inch 6″ 2
×
