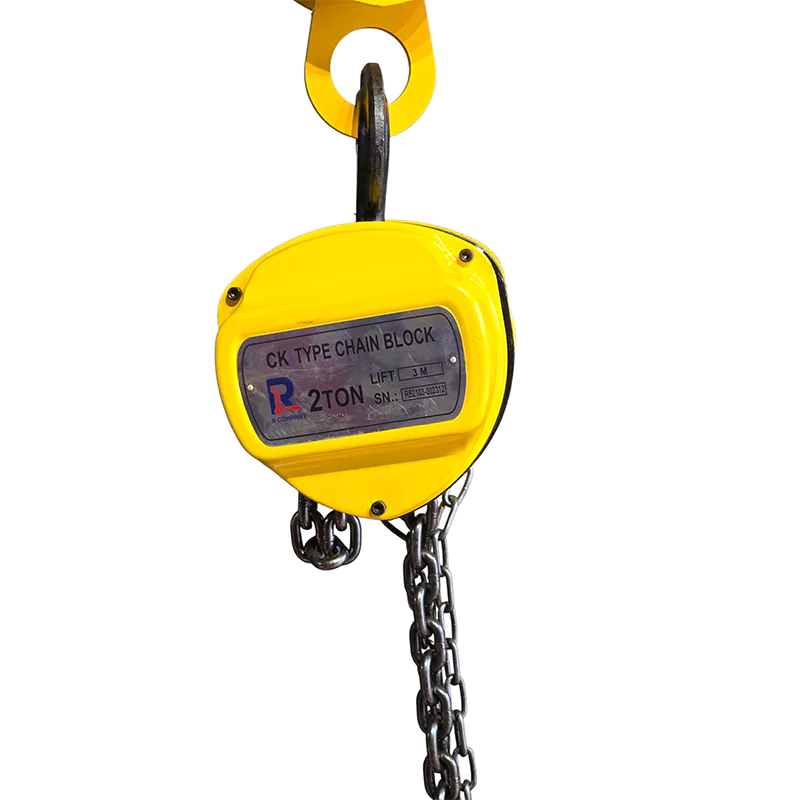

Heavy Duty : Class II Manufactured as per IS
Tested at : 50% Overload
Hooks : As per IS: specs
Load Chain : 8 mm, Grade 80, Alloy Steel Material

×

Product Inquiry

Categories:

Specifications:

  • Load Chain Wheel: S.G. Iron Casting – Accurately pocketed, internally grinded for longer life of Main Shaft
  • Braking Mechanism: Screw & Friction Disc Type – Self actuating
  • Hand Chain Wheel: Pressed Steel – Accurately pocketed, Smooth Hand chain Pulling operation
  • Gears: Alloy Steel Material, precise machined, gear hobbed & case hardened – duly annealed. Gears shall be lubricated with a semi-liquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods.
  • Design Type Test: Accomplished successfully as per the requirement of IS: s3832 -2005 (4 times load – lifted for 5 minutes – Once at the time of design stage)
  • Endurance Type Test: Accomplished successfully as per the requirement of IS: 3832 – 2005 (100 Hrs. running on Block at speed of Hand Chain of 20 Mtr./Min – Once in Six Months)
×
