Battery Operated Scissor Table
Model No : RE-116

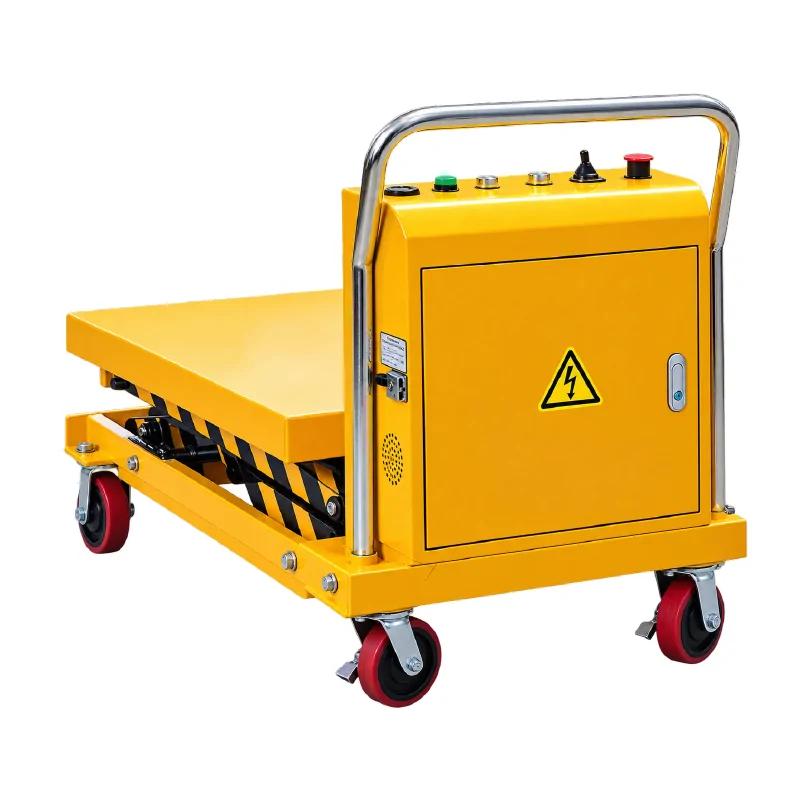

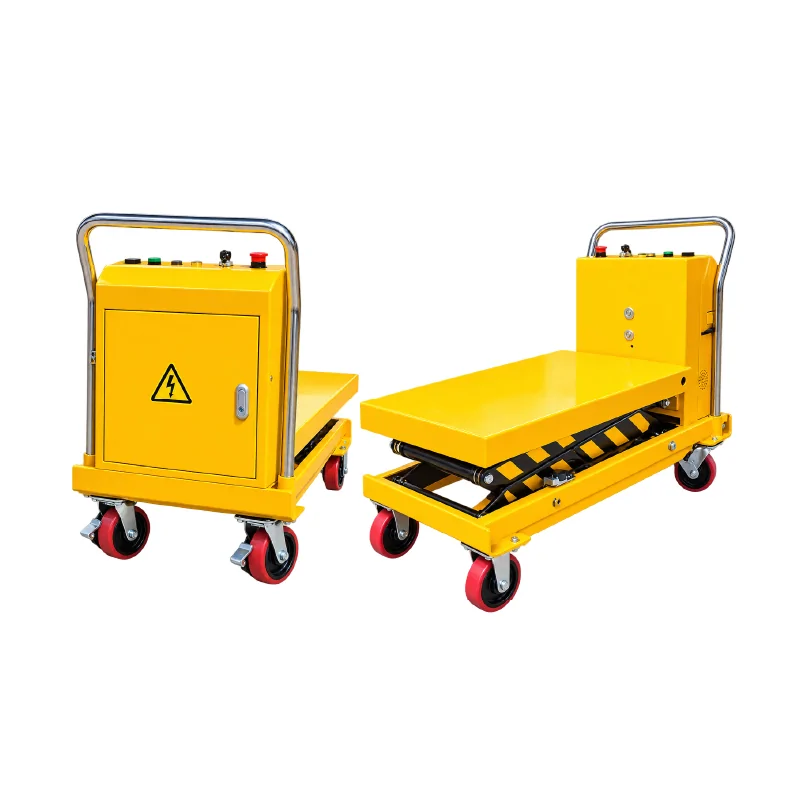

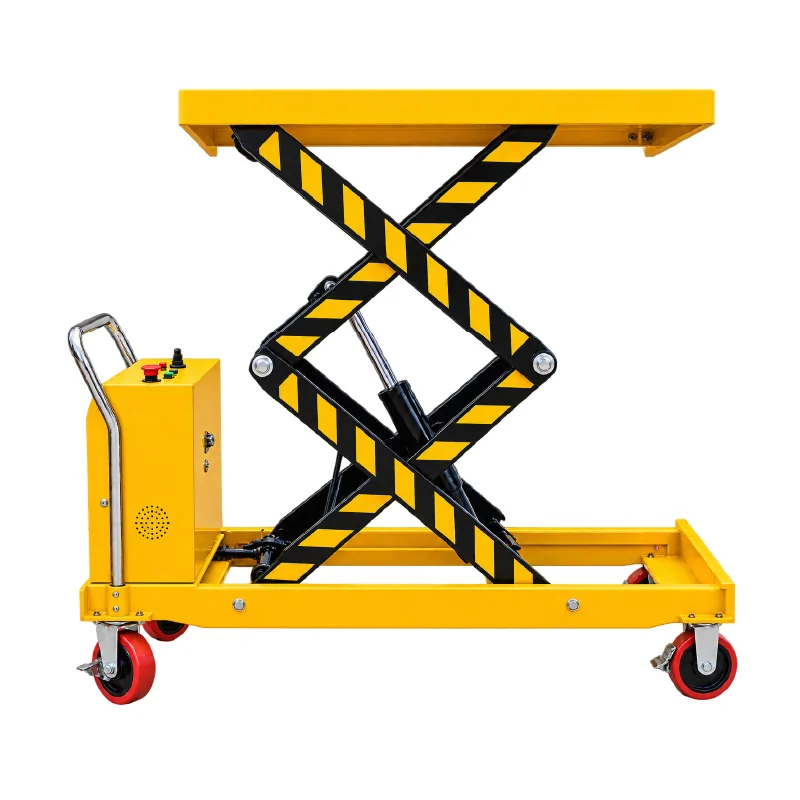

Rudra Equipment Battery Operated Scissor Table (RE-116) is designed for smooth handling, easy operation and maximum efficiency in material movement. It features a heavy-duty construction, battery-operated hydraulic lifting system and durable wheels for industrial material handling applications. The RE-116 is available in multiple configurations with capacities from 500 kg to 2000 kg and maximum lifting heights from 1000 mm to 2000 mm.
| Model | Capacity | Scissor Type | Hydraulic Cylinder | Wheel Size | Platform Size | Min. Height | Max. Lift Height |
|---|---|---|---|---|---|---|---|
| RE-116 | 500 kg | Double | 1 No. | 125 × 50 mm | 510 × 900 mm | 380 mm | 1500 mm |
| RE-116 | 1000 kg | Double | 2 Nos. | 150 × 50 mm | 1200 × 600 mm | 500 mm | 1700 mm |
| RE-116 | 1000 kg | Single | 1 No. | 125 × 50 mm | 1000 × 510 mm | 420 mm | 1000 mm |
| RE-116 | 500 kg | Double | 1 No. | 150 × 50 mm | 610 × 1200 mm | 400 mm | 1500 mm |
| RE-116 | 2000 kg | Single | 2 Nos. | 150 × 50 mm | 1200 × 600 mm | 380 mm | 1000 mm |
| RE-116 | 500 kg | Triple | 1 No. | 150 × 50 mm | 900 × 500 mm | 475 mm | 2000 mm |
Model Name : 500 Kg Double Scissor, 1000 Kg Double Scissor, 1000 Kg Single Scissor, 500 Kg Double Scissor – Large Platform, 2000 Kg Single Scissor, 500 Kg Triple Scissor
